JJ ECC803s (Long plate ECC83)

JJ ECC803s (Long plate ECC83)
  Zoom
JJ ECC803s (Long plate ECC83)JJ ECC803s (Long plate ECC83)JJ ECC803s (Long plate ECC83)
Our Price:  £14.95
+
Valve Testing Options

Availability:



In stock, immediate despatch


Model:  SKU5-1
Part Number:  ECC803
Brand:  JJ

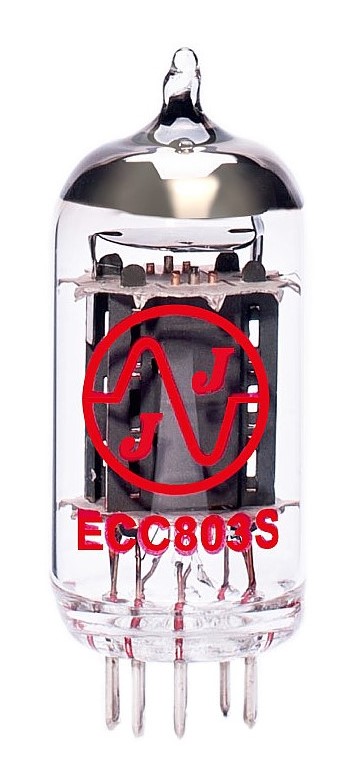

The JJ ECC803s has a classic long plate design with a special grid to reduce microphonics noise. This is another offering from JJ and once again it's a beautiful sounding valve. It has a deep, tight low end that the ECC83S has but the mids in the ECC803S are even thicker and more harmonically complex than the ECC83S. The ECC803S is also a touch hotter in the high end than the ECC83S.

This is a great tube for V1 positions or for use in all positions in vintage amps. I do not recommend them for use in the gain stages of high gain amps if you like to run your gain full on. All preamp tubes are microphonic it's just a matter of where the threshold is and longer plate tubes will squeal before a short plate tube will, so for real high gain amps I would stick with the ECC83S. I wouldn't recommend these in small combos where the tubes are in close proximity to the speaker.

These are premium tested on specialised digital and analogue testing equipment by
Karltone as follows

  • Gain (A)
  • Transconductance (gm)
  • Noise (dbv)
  • Microphonics
  • Emission Quality
  • Grid Leakage
  • Shorts

Test results are provided with purchase
