JJ E34L (Hi-Grade EL34)

JJ E34L (Hi-Grade EL34)
  Zoom
JJ E34L (Hi-Grade EL34)JJ E34L (Hi-Grade EL34)JJ E34L (Hi-Grade EL34)
Our Price:  £15.95
+

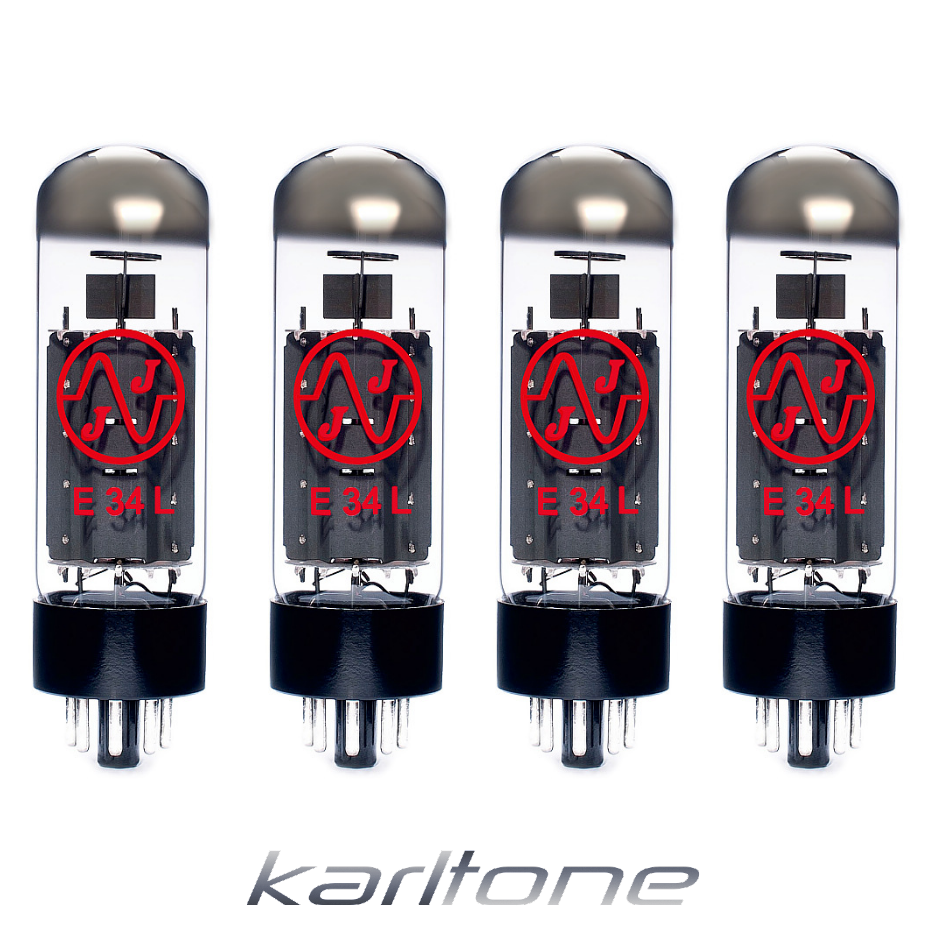

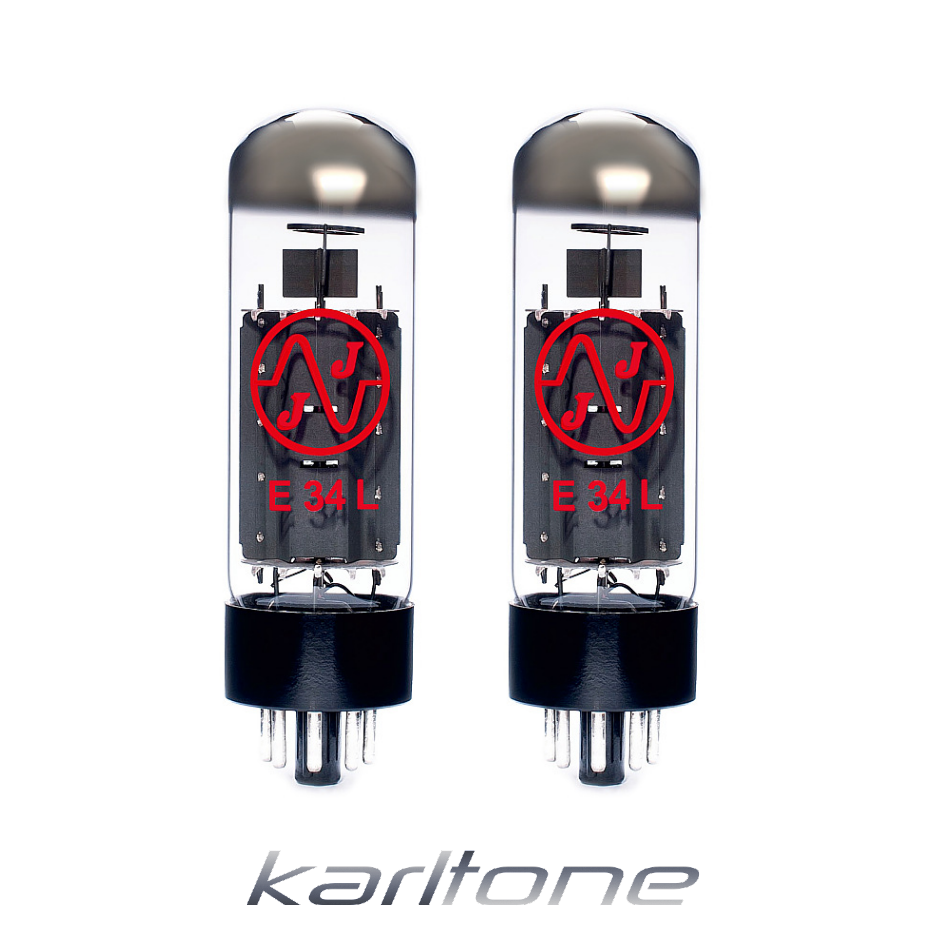

Matching Options


Availability:



In stock, immediate despatch


Model:  SKU8-1
Part Number:  E34L
Brand:  JJ

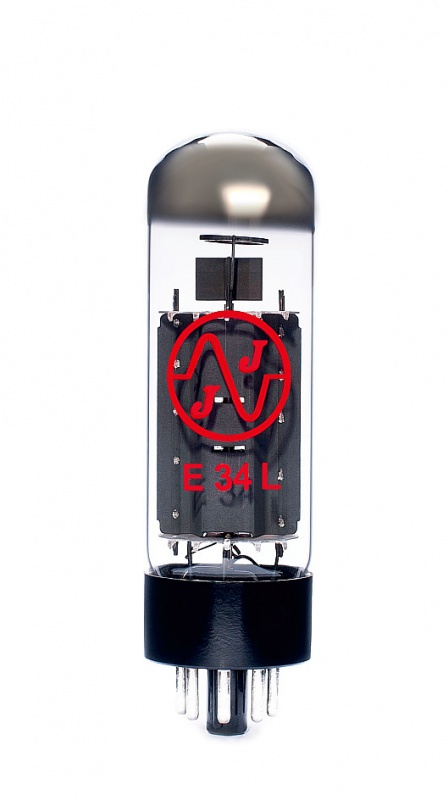

The JJ E34L is a high grade EL34. The valve is well made with thick glass and large anode plates. This valve has higher plate dissipation than the JJ EL34 and smoother top end. Works very well with Marshalls to calm down their ice pick top end.

Platinum Matched & Tested

All our power-amp valves are burned in under load on our burn-in racks for at least 24 hours. The filaments are powered and voltage is also applied to the plate to simulate real use. The reason we do this is get rid of any faulty or weak valves and as a pre-grading process to allow the plate/grid mechanism to relax into it's rest position. Tiny differences in construction make for enormous differences in electrical characteristics, and thus if a valve is graded after it's been burned in then the measured characteristics hold true over its lifespan to a greater extent.

This seems simple but it's amazing how many vendors ignore it. It's the reason so many people complain about poorly graded valves.

The Power amp valves are Platinum Matched & Tested with state of the art digital & analogue measuring equipment for

  • Current (ma)
  • Transconductance (gm)
  • Emission Quality
  • Grid Leakage
  • Shorts
